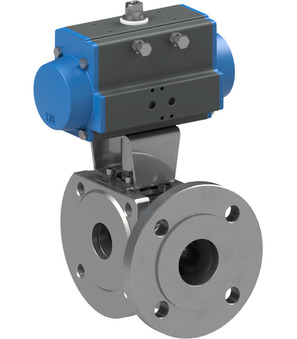

Flanged ball valve with pneumatic actuator BA053-50-D0-02

Name: Flanged ball valve with pneumatic actuator BA053-50-D0-02
Brand: STASTO
SKU: BA053-50-D0-02

Flanged ball valve with pneumatic actuator; With heating jacket; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; DN ball 40mm; Length 82mm; Actuator PAD075; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA05350D002

flanged ball valve with pneumatic actuator; with heating jacket; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; DN ball 40mm; length 82mm; actuator PAD075; ball L

On request

DN
- 50 mm
Length
- 82 mm
DN ball
- 40 mm
Ball
- L
Actuator
- PAD075

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
DN ball	40 mm
Designs
Ball	L
characteristics
Actuator	PAD075

BA053-50-L-02 x 1.0

BA053-50-L-02

Flanged ball valve; 3-way-type; With Heating jacket;Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; DN ball 40mm; Length 82mm; Ball L; Connections Heating jacket G 3/4"

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3009 x 1.0
