Flanged ball valve with pneumatic actuator Series BA043-A Store

Flanged ball valve with pneumatic actuator BA043-150-D0-A

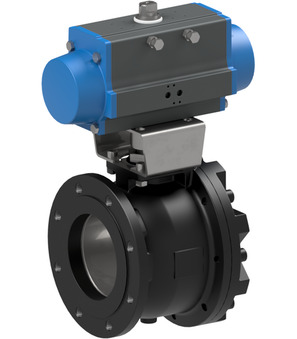

Name: Flanged ball valve with pneumatic actuator BA043-150-D0-A
Brand: STASTO
SKU: BA043-150-D0-A
Price: 14318.5 PLN
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA043-A; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Actuator PAD125

Intrastat No.: 84818081
Country of origin: Italy
Weight: 79.68 Kg
Short Itemnumber:BA043150D0A

flanged ball valve with pneumatic actuator series BA043-A; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 150mm; length 232mm; actuator PAD125

14.318,50 zł 14318.5 PLN 14.318,50 zł

DN
- 150 mm
Length
- 232 mm
Design
- ATEX
Actuator
- PAD125

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	150 mm
Length	232 mm
design
Design	ATEX
characteristics
Actuator	PAD125

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Declarations of Conformity

Druckluftdrehantrieb_EN.pdf

Download

BA043-150-L-A x 1.0

Flanged ball valve BA043-150-L-A

Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 150mm; Length 232mm

Add to Cart

PAD125 x 1.0

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

Add to Cart

RI3042 x 1.0
