Ball valve with pneumatic actuator Series BA028-A Store

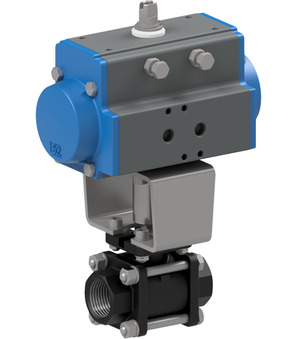

Ball valve with pneumatic actuator BA028-34-D0-A

Name: Ball valve with pneumatic actuator BA028-34-D0-A
Brand: STASTO
SKU: BA028-34-D0-A

Ball valve with pneumatic actuator Series BA028-A; ATEX II 2 G/D; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.13 Kg
Short Itemnumber:BA02834D0A

ball valve with pneumatic actuator series BA028-A; ATEX II 2 G/D; female thread; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+160°C; RP 3/4"; nominal diameter 20mm; pressure range 0...40bar; length 76mm; actuator PAD052

On request

Female thread
- RP 3/4"
DN
- 20 mm
Length
- 76 mm
Design
- ATEX
Pressure range
- 0...40 bar
Actuator
- PAD052

This combination does not exist.

Availability:

Specifications
Spare Parts

dimension
Female thread	RP 3/4"
DN	20 mm
Length	76 mm
design
Design	ATEX
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAD052

BA028-34-L-A x 1.0

Ball valve made of steel 3/4"-20-0...40-76

Ball valve made of steel Series BA028-L-A; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3/4"; Nominal diameter 20mm; Pressure range 0...40bar; Length 76mm

Add to Cart

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

Add to Cart

RI3781 x 1.0
