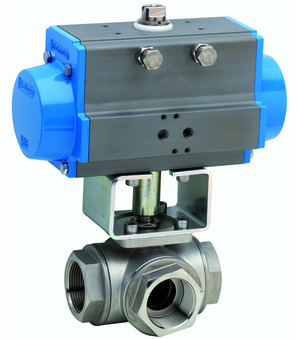

Ball valve with pneumatic actuator BA038-10-3S0

Ball valve with pneumatic actuator BA038-10-3S0

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 03; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.99 Kg
Short Itemnumber: BA038103S0
https://www.stasto.pl/web/image/product.template/233321/image_1920?unique=e148276

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 03; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

3.698,20 zł 3698.2 PLN 3.698,20 zł

cena na zapytanie

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64bar
Female thread G 1"
DN 20 mm
Length 102,4 mm
Ball T

BA038-10-3S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA038-10-L
BA038-10-L x 1.0 Pcs
Ball valve made of stainless steel BA038-10-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball T
Pneumatic actuator PAS0855
PAS0855 x 1.0 Pcs
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
RI3771 x 1.0 Pcs
RI3771
Mounting bracket; F05/F07-F05; 17-11
