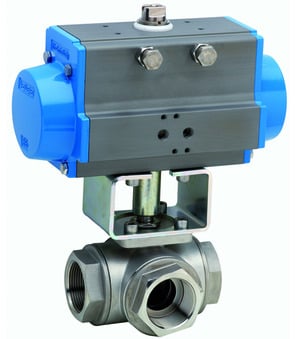

Ball valve with pneumatic actuator BA038-10-2S0

Price:

3.698,20 zł

Home
Search
⁰
Wishlist
Account

Ball valve with pneumatic actuator Series BA037, BA038 Store

Ball valve with pneumatic actuator BA038-10-2S0

Ball valve with pneumatic actuator BA038-10-2S0

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 02; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 5.99 Kg
Short Itemnumber:BA038102S0

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; reduced bore; flow path 02; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 1"; nominal diameter 20mm; length 102,4mm; actuator PAS0855; ball T

3.698,20 zł 3698.2 PLN 3.698,20 zł

Female thread
- G 1"
DN
- 20 mm
Length
- 102,4 mm
Ball
- T
Actuator
- PAS0855

This combination does not exist.

Availability:

Adaugă în coș

dimension
Female thread	G 1"
DN	20 mm
Length	102,4 mm
Designs
Ball	T
characteristics
Actuator	PAS0855

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Ball valve with pneumatic actuator Series BA037, BA038-D0_EN.pdf

Datové listy

1

Datový list_kulový kohout s otočným pneumatickým pohonem série BA037, BA038-D0_CS.pdf

Data Sheets

1

Datablad_Kugleventil med pneumatisk drejedrev Serie BA037, BA038-D0_DA_DK.pdf

Datenblätter

1

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA037, BA038-D0_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA037, BA038-D0_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA037, BA038-D0_ES.pdf

Data Sheets

1

Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA037, BA038-D0_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA037, BA038-D0_FR.pdf

Data Sheets

1

Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA037, BA038-D0_HR.pdf

Adatlapok

1

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA037, BA038-D0_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA037, BA038-D0_IT.pdf

Data Sheets

1

Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA037, BA038-D0_NB_NO.pdf

Data Sheets

1

Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA037, BA038-D0_NL.pdf

Karty katalogowe

1

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA037, BA038-D0_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA037, BA038-D0_RO.pdf

Podatkovni listi

1

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA037, BA038-D0_SL.pdf

Data Sheets

1

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA037, BA038-D0_SRLATIN.pdf

Data Sheets

1

Datablad_Kulventil med pneumatiskt vriddon Serie BA037, BA038-D0_SV.pdf

Ball valve made of stainless steel BA038-10-L

BA038-10-L x 1.0

Ball valve made of stainless steel BA038-10-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball T

Pneumatic actuator PAS0855

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

RI3771 x 1.0

RI3771

Mounting bracket; F05/F07-F05; 17-11
