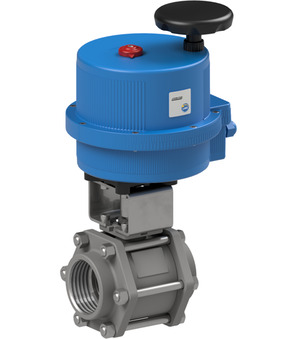

Ball valve with electrical actuator 8E002004-3"

Price:

7.557,50 zł
Ball valve with electrical actuator Series 8E002 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E002
  6. 8E002004-3"
Ball valve with electrical actuator 8E002004-3"
  2. STASTO Store
  3. Ball valve with electrical actuator 8E002004-3"
Ball valve with electrical actuator 8E030002-3"
Ball valve with electrical actuator 8E030002-3"
7.274,10 zł
7.274,10 zł
Ball valve with electrical actuator 8E002002-4"
Ball valve with electrical actuator 8E002002-4"
10.570,60 zł
10.570,60 zł

Ball valve with electrical actuator 8E002004-3"

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.46 Kg
Short Itemnumber:8E0020043
https://www.stasto.pl/web/image/product.template/66452/image_1920?unique=5acce66

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

7.557,50 zł 7557.5 PLN 7.557,50 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 3"
DN 80 mm
Length 180 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s
