Ball valve with electrical actuator 8E002002-1"

Price:

3.236,70 zł
Ball valve with electrical actuator Series 8E002 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E002
  6. 8E002002-1"

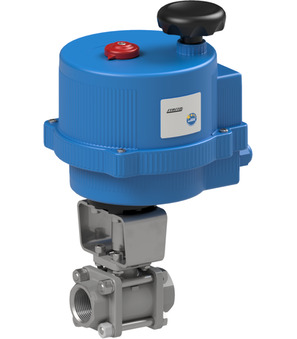

Ball valve with electrical actuator 8E002002-1"
  2. STASTO Store
  3. Ball valve with electrical actuator 8E002002-1"
Ball valve with electrical actuator 8E002004-3/4"
Ball valve with electrical actuator 8E002004-3/4"
2.579,70 zł
2.579,70 zł
Ball valve with electrical actuator 8E002004-1"
Ball valve with electrical actuator 8E002004-1"
3.506,40 zł
3.506,40 zł

Ball valve with electrical actuator 8E002002-1"

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Operating time 8s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.67 Kg
Short Itemnumber:8E0020021
https://www.stasto.pl/web/image/product.template/66461/image_1920?unique=5acce66

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; DN 25mm; Pressure range 0-40bar; Length 92mm; Operating time 8s; Voltage 24VAC/DC

3.236,70 zł 3236.7 PLN 3.236,70 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1"
DN 25 mm
Length 92 mm
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB030L
Operating time 8 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with electrical actuator Series 8E002_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Ball valve with electrical actuator Series 8E002_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E0020021.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout s elektropohonem série 8E002_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s elektropohonem série 8E002_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Kugleventil med elektrisk aktuator Serie 8E002_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Elektroantrieb Serie 8E002_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E002_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με ηλεκτρικό ενεργοποιητή Σειρά 8E002_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con actuador eléctrico Serie 8E002_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Palloventtiili sähkötoimilaitteella Sarja 8E002_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique avec actionneur électrique Série 8E002_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Kuglasti ventil s električnim pogonom Serija 8E002_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett gömbcsap sorozat 8E002_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E002_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera con attuatore elettrico Serie 8E002_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Kuleventil med elektrisk aktuator Serie 8E002_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Kogelkraan met elektrische aandrijving Serie 8E002_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem elektrycznym Seria 8E002_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E002_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu sferă cu actuator electric serie 8E002_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa z električnim pogonom serija 8E002_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E002_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa električnim aktuatorom serije 8E002_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E002_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Kulventil med elektriskt ställdon Serie 8E002_SV.pdf
Download
Ball valve made of stainless steel 710000-1"
710000-1" x 1.0
Ball valve made of stainless steel 710000-1"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm
Add to Cart
Electrical actuator VB030-L
VB030-L x 1.0
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
