21A5KV45-UDA12230AS-C003-32-6

Price:

389,80 zł
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A5KV45-UDA12230AS-C003-32-6
21A5KV45-UDA12230AS-C003-32-6
21A5KV45-BDA08110DS-C003-32-LV-1
21A5KV45-BDA08110DS-C003-32-LV-1
371,40 zł
371,40 zł
2/2-way solenoid valve 21A5KV45-GDV14230AY
2/2-way solenoid valve 21A5KV45-GDV14230AY
497,20 zł
497,20 zł

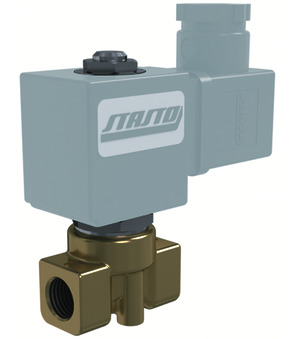

21A5KV45-UDA12230AS-C003-32-6

21A5KV45
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 4,5mm; Pressure AC 0-5bar; Pressure DC 0-2bar; Length 46mm
UDA12230AS
Coil Type UDA; Standard; Connector size 32mm; Voltage 230V/50Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.41 Kg
Short Itemnumber:21A5KV45UDA12230ASC003326
https://www.stasto.pl/web/image/product.template/211601/image_1920?unique=29ba511

21A5KV45
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 3/8"; DN 4,5mm; pressure AC 0-5bar; pressure DC 0-2bar; length 46mm
UDA12230AS
coil type UDA; standard; connector size 32mm; voltage 230V/50Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

389,80 zł 389.8 PLN 389,80 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/8"
DN 4,5 mm
Length 46 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 230V/50Hz
pressure
Pressure AC 0...5 bar
Pressure DC 0...2 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
