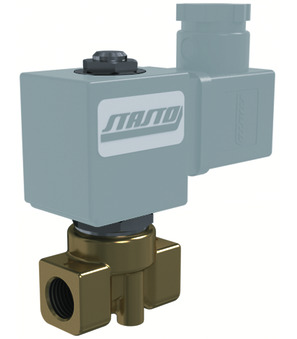

2/2-way solenoid valve 21A5KV45-GDV14230AY

2/2-way solenoid valve 21A5KV45-GDV14230AY

21A5KV45
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 4,5mm; Pressure AC 0-5bar; Pressure DC 0-2bar; Length 46mm
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.56 Kg
Short Itemnumber:21A5KV45GDV14230AY

21A5KV45
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 3/8"; DN 4,5mm; pressure AC 0-5bar; pressure DC 0-2bar; length 46mm
GDV14230AY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 230V/50Hz, 240V/60Hz; approval CSA/UL/VDE

This product has no valid combination.

dimension
Female thread	G 3/8"
DN	4,5 mm
Length	46 mm
Designs
Connector size	32 mm
Electrical key figures
Voltage	230V/50Hz-240V/60Hz
pressure
Pressure AC	0...5 bar
Pressure DC	0...2 bar
materials
Seal	FKM
characteristics
Coil	BDA
Medium temperature	-10...+120 °C
Approval	UL/CSA/VDE
