Pneumatics

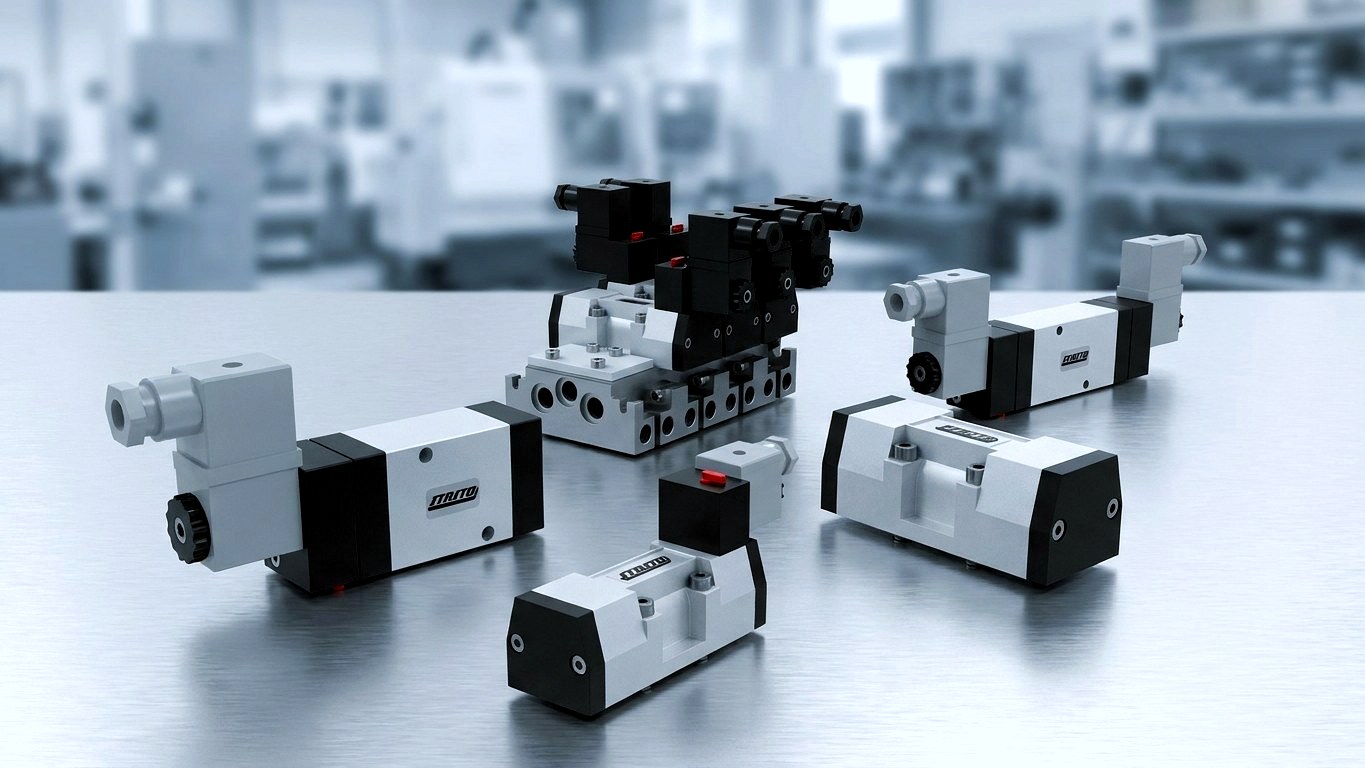

Directional control valves to ISO 5599-1 - 5/2 and 5/3 valves in the PS110, PS111 and PS112 series
ISO 5599-1 defines the port patterns that allow pilot-operated directional control valves to be interchanged across manufacturers and combined into valve manifolds. STASTO supplies 5/2 and 5/3 directional control valves in the PS110, PS111 and PS112 series in sizes ISO1 and ISO2 - including matching sub-base and base plates, solenoid coils and device connectors.
ISO1 and ISO2 sizes at a glance
Your Benefits
Why ISO Directional Control Valves from STASTO
Standardized connection patterns, clear flow values and matching accessories: the PS110, PS111 and PS112 series are designed for reliable procurement planning and fast replacement.
Standardized Connection Patterns - Predictable Replacement
All valves in the PS110, PS111 and PS112 series are manufactured to ISO 5599/1. The connection pattern for each size is standardized, so valves can be swapped onto existing base and sub-plates - without reworking the piping. We are happy to check actual interchangeability with your existing plate.
Two Sizes, Clear Flow Values
ISO1 with a nominal bore of 8 mm delivers 1,080 Nl/min (PS110/PS111) or 800 Nl/min in the 5/3 version PS112. ISO2 with a nominal bore of 13 mm reaches 2,200 Nl/min (PS110/PS111) or 1,800 Nl/min (PS112). Size ISO3 is also available depending on the variant - please inquire.
Valve Island Instead of Individual Piping
With sub-bases, end plates and manifold kits from the SBI1 and SBI2 series, individual valves become compact valve islands with shared air supply and common exhaust manifold. Individual base plates such as SBI1-SBL or SBI2-SL cover the need for decentralized single-valve mounting.
Fully Assembled and Tested
On request, STASTO supplies ready-made combinations: valves, coils, connector sockets, manifold connection plates, silencers and fittings - fully assembled and tested as a single item. This reduces assembly time and sources of error during commissioning.
Guide
Understanding ISO 5599-1 - sizes, sub-bases, interchangeability
What the standard defines, how to select the size based on flow rate, and how individual valves become a valve island.
Standard and sizes
- What the standard defines
- ISO 5599-1 defines the position and size of ports 1 (pressure), 2 and 4 (working), 3 and 5 (exhaust), as well as the mounting points on the sub-base. This allows the valve and sub-base to be sourced as separately available components.
- ISO1 size
- Nominal size 8 mm, 1,080 Nl/min for PS110/PS111, 800 Nl/min for the 5/3 series PS112. Working ports 1/4".
- ISO2 size
- Nominal size 13 mm, 2,200 Nl/min for PS110/PS111, 1,800 Nl/min for PS112. Working ports 3/8".
- ISO3 size
- Sub-bases such as BF-3060 with 1/2" ports show that ISO3 is also covered - versions available on request depending on the variant.
- Selection criterion
- The decisive factor is not the housing size, but the flow rate required at the cylinder.
From individual valve to valve island
- Sub-bases
- SBI1-CE and SBI2-CE are lined up together and form the base body of the valve terminal; BMI1 is the sub-base for ISO1.
- End plate kit
- SBI1-CK and SBI2-CK close off the row and establish the central supply.
- Individual base plates
- SBI1-SBL and SBI2-SL are the right choice for decentralized single mounting directly at the point of use.
- Valve terminal advantages
- A central compressed air supply instead of many individual lines, common exhaust with silencer, shorter assembly time and clearer wiring.
Electrical connection
- Standard coil C001
- All three series work with the C001 coil at 22 mm connector width.
- C001-03
- Solenoid coil for 24 V DC or 48 V 50-60 Hz.
- C001-22
- Solenoid coil for 230 V 50-60 Hz.
- Device connector C002-31-6
- Standard version for 0-250 V AC/DC.
- C002-31-LV-1 / -LV-2
- With built-in yellow LED and VDR - recommended for status indication and to protect the control outputs.
Series Comparison
PS110, PS111 and PS112 Compared
Monostable, bistable, or with mid-position: the three ISO series differ in function, actuation, and pressure range.
| PS110 | PS111 | PS112 | |
|---|---|---|---|
| Function | 5/2-Way Valve | 5/2-Way Valve | 5/3-Way Valve |
| Actuation | Electric/spring or electric with internal pilot air (version -PS) | Electric/Electric | Electric/Electric |
| Pressure Range | 2.5 ... 10 bar | 1.5 ... 10 bar | 3 ... 10 bar |
| Special feature | Monostable, spring-return - defined rest position in case of signal failure | Bistable (impulse valve), position is retained in case of power failure | Mid-position closed (-C) or exhausted (-0) |
| Flow rate ISO1 (NW 8 mm) | 1,080 Nl/min | 1,080 Nl/min | 800 Nl/min |
| Flow rate ISO2 (NW 13 mm) | 2,200 Nl/min | 2,200 Nl/min | 1,800 Nl/min |
| Typical application | Safe home position for double-acting cylinders | Energy-saving retention of switch position with short pulses | Positional holding (locked) or force-free manual movement (exhausted) |
| Standard / coil | ISO 5599/1, coil C001, connector width 22 mm | ISO 5599/1, coil C001, connector width 22 mm | ISO 5599/1, coil C001, connector width 22 mm |
Product Range
ISO directional control valves and connection plates in the STASTO shop
The PS110, PS111 and PS112 series to ISO 5599/1, plus the matching accessories for valve island assemblies and electrical connection.
Applications
Where ISO 5599-1 valves are used
From cylinder control in machine building to process-related valve actuation with NAMUR interface.
Machine and Plant Engineering
Actuation of double-acting cylinders in handling, clamping, and feed axes. Sizes ISO1 and ISO2 cover typical requirements from small gripper axes to large-volume cylinders.
Central Valve Islands in the Control Cabinet
Multiple valves on a manifold base plate, jointly supplied and exhausted - available as a pre-assembled, mounted, and tested STASTO combination with coils (24 V DC), device connectors, and silencers.
Process-Related Valve Actuation
For direct connection to rotary actuators, besides ISO 5599-1, the NAMUR interface with mounting dimensions per VDI/VDE 3845 is especially relevant. Matching 3/2 and 5/2 NAMUR valves can be found in the linked category.
Maintenance and Spare Parts Procurement
If an existing ISO valve fails, the standardized connection pattern allows replacement on the existing base plate. It's essential to correctly match size, function (5/2 monostable, 5/2 bistable, 5/3), and coil voltage.
Packaging and Filling Machines
Cyclic cylinder movements on packaging lines benefit from compact valve islands: short tubing runs, clear wiring, and defined default position via spring-return 5/2 valves of the PS110 series.
Systems with Special Requirements
Versions for special requirements - such as explosion protection or special materials - are reviewed on a project basis. Contact us with your specifications.
Technology & Supply

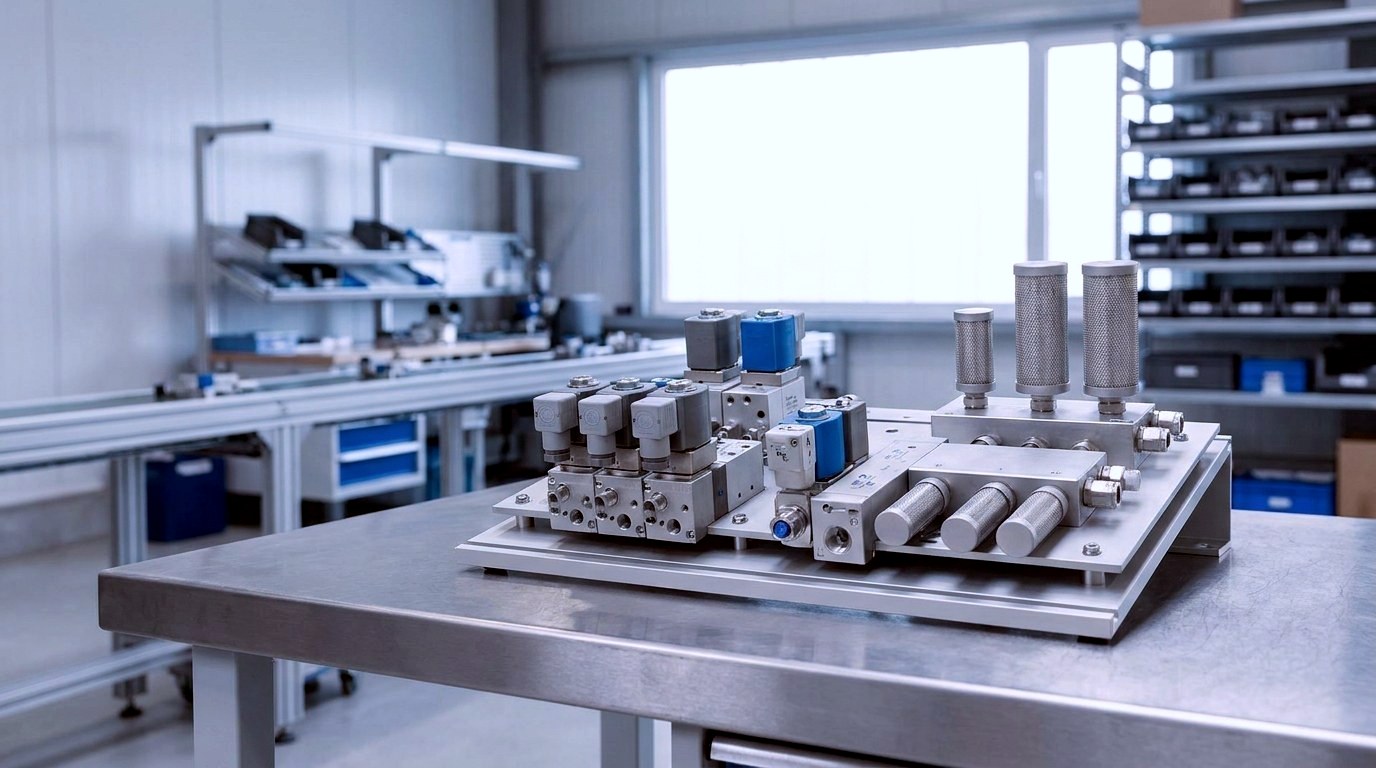

Accessories, Availability and Sizing
Valves, coils, sub-bases and silencers from a single source – on request supplied as a fully assembled and tested unit.
Availability
Many versions are available on short notice – check the specific availability and lead time for each item variant or contact us to inquire.
Temperature and Media
Please refer to the datasheet of the respective series for permissible media and ambient temperatures.
Accessories from our range
Solenoid coils C001-03 and C001-22, connector sockets C002-31-6 as well as C002-31-LV-1/-LV-2 with LED and VDR, connection plates SBI1/SBI2 and BMI1, silencers SLS-PS, SLN-RB and SLN-P-PP, fittings PI12C and PI16-360 as well as sealing plugs TH64C.
Special designs
We review designs for special requirements such as explosion protection, special materials or specific certificates of origin on a project basis - please contact us.
Frequently Asked Questions
FAQ on Directional Control Valves per ISO 5599-1
Answers on standard, sizes, interchangeability, and valve manifold setup.
What does ISO 5599-1 mean for directional control valves?
ISO 5599-1 standardizes the port pattern of pilot-operated pneumatic directional control valves. Valves from different manufacturers with the same size therefore fit the same sub-base or manifold plate. The standard defines the location and size of ports 1 (pressure), 2 and 4 (working ports), 3 and 5 (exhaust), as well as the mounting points.
Are ISO valves interchangeable across manufacturers?
Yes, for the same size, the port pattern is standardized, so valves can be swapped on existing sub-bases and manifold plates - without reworking the piping. We're happy to check the actual interchangeability for your installed base against your existing plate.
Which size do I need - ISO1 or ISO2?
What matters is the required flow rate, not the housing size. ISO1 with a nominal bore of 8 mm delivers 1,080 Nl/min, ISO2 with a nominal bore of 13 mm delivers 2,200 Nl/min (each for PS110/PS111); for the 5/3 series PS112, the values are lower by design at 800 and 1,800 Nl/min respectively.
What is a valve manifold and what are its advantages?
A valve manifold combines several valves on shared manifold plates and supplies them centrally with compressed air. Advantages over individual piping include a central air supply instead of many separate lines, shared exhaust with a silencer, shorter installation time, and cleaner wiring. It's built up from center sections such as SBI1-CE or SBI2-CE and a manifold plate kit, SBI1-CK or SBI2-CK.
What is the difference between 5/2 monostable, 5/2 bistable, and 5/3?
A monostable 5/2 valve (PS110) returns to a defined rest position via spring return when the signal is lost, while a bistable 5/2 impulse valve (PS111) holds its switching position without a continuous signal. The 5/3 valve PS112 additionally offers a center position - blocked for holding a position, or exhausted for force-free manual movement.
What is the difference between ISO 5599-1 and NAMUR?
ISO 5599-1 standardizes the port pattern for mounting on base and sub-base plates, while the NAMUR interface, with mounting dimensions per VDI/VDE 3845, is designed for direct mounting onto pneumatic actuators of valves. For process-related valve actuation, you'll find 3/2 and 5/2 NAMUR valves in the corresponding category.
Which solenoid coils and device connectors fit the PS110, PS111 and PS112 series?
All three series work with the standard coil C001 at a 22 mm connector width, for example C001-03 for 24 V DC/48 V 50-60 Hz and C001-22 for 230 V 50-60 Hz. As device connector, the standard version C002-31-6 (0-250 V AC/DC) or the variant C002-31-LV-1/-LV-2 with yellow LED and VDR is available.
Is size ISO3 also available?
Size ISO3 is also available depending on the variant - please inquire about the desired version. Matching individual sub-base plates such as BF-3060 with 1/2" ports are part of the range.
Also Relevant
Related Categories and Series
Additional directional control valve designs and connector widths, plus informative category pages for valve selection.
Next Step
Choose ISO Directional Control Valves or Request a Configuration
Do you already know the size, function, and coil voltage you need? Then head straight to the range. If not: we'll work with you to specify the right combination of valve, sub-base, coil, and silencer.
