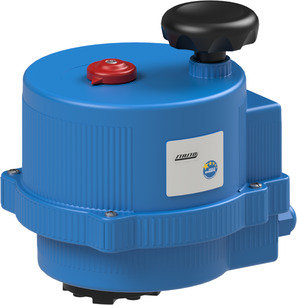

Electrical actuator VB350-L-AKKU-P0S
Electrical actuator Series VB-AKKU-POS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Incl. Positioner 4-20mA/0-10V; Including Accumulator for safety position; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 24VAC/DC; Function NC
Country of origin: Italy
Weight: 6.08 Kg
Short Itemnumber:VB350LAKKUP0S
electrical actuator series VB-AKKU-POS; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67; incl. positioner 4-20mA/0-10V; including accumulator for safety position; torque 350Nm; operating time 50s; flange ISO5211 F07/F10-Stern 22 mm; voltage 24VAC/DC; function NC
| function | |
|---|---|
| Function | NC |
| Designs | |
| Flange ISO5211 | F07/F10-star 22mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Torque | 350 Nm |
| Operating time | 50 s |
| function | |
|---|---|
| Function | NC |
| Designs | |
| Flange ISO5211 | F07/F10-star 22mm |
| Electrical key figures | |
| Voltage | 24VAC/DC |
| characteristics | |
| Torque | 350 Nm |
| Operating time | 50 s |
