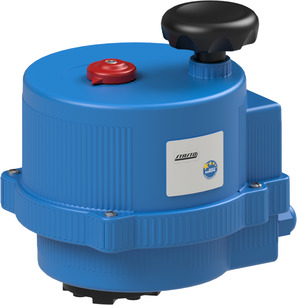

Electrical actuator VB060-H-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NC
Country of origin: Italy
Weight: 3.71 Kg
Short Itemnumber: VB060HAKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100…240VAC; Function NC
| function | |
|---|---|
| Function | NC |
| Designs | |
| Flange ISO5211 | F05/F07-star 14mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Torque | 60 Nm |
| Operating time | 9 s |
