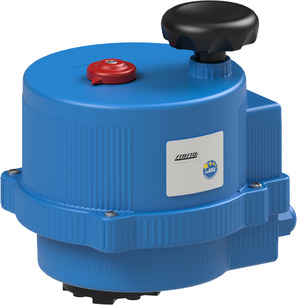

Electrical actuator VB030-H-AKKU-P0S
Electrical actuator Series VB-AKKU-POS; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Incl. Positioner 4-20mA/0-10V; Including Accumulator for safety position; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100...240VAC; Function NC
Country of origin: Italy
Weight: 100.0 Kg
Short Itemnumber:VB030HAKKUP0S
electrical actuator series VB-AKKU-POS; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67; incl. positioner 4-20mA/0-10V; including accumulator for safety position; torque 30Nm; operating time 8s; flange ISO5211 F03/F05-Stern 11 mm; voltage 100...240VAC; function NC
| function | |
|---|---|
| Function | NC |
| Designs | |
| Flange ISO5211 | F03/F05-star 11mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Torque | 30 Nm |
| Operating time | 8 s |
