TES012

TES012

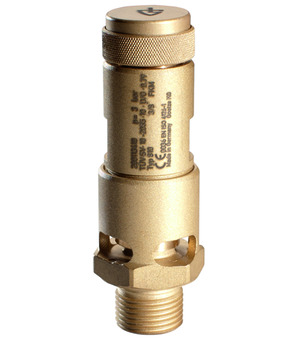

Safety valve With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -60…60°C; Seal PTFE; Connection G 1/4"; DN 7,5mm; Set pressure 1,5bar; Free of oil and grease for oxygen, Incl. Test report EN-10204-2.2; Shrink-wrapped in plastic film

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.08 Kg
Short Itemnumber: TES012
https://www.stasto.pl/web/image/product.template/211300/image_1920?unique=9376c83

safety valve with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…60°C; seal PTFE; connection G 1/4"; DN 7,5mm; set pressure 1,5bar; free of oil and grease for oxygen, incl. test report EN-10204-2.2; shrink-wrapped in plastic film

1.627,10 zł 1627.1 PLN 1.627,10 zł

cena na zapytanie

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

No Specifications
Safety valve SV01-14-7.5-1,5-3C-2A0
SV01-14-7.5-1,5-3C-2A0 x 1.0
Safety valve SV01-14-7.5-1,5-3C-2A0
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature Max. 60°C; Seal PTFE-TFM1600; Connection G 1/4"; DN 7,5mm; Set pressure 1,5bar; Free of oil and grease for oxygen, Incl. Test report EN-10204-2.2
