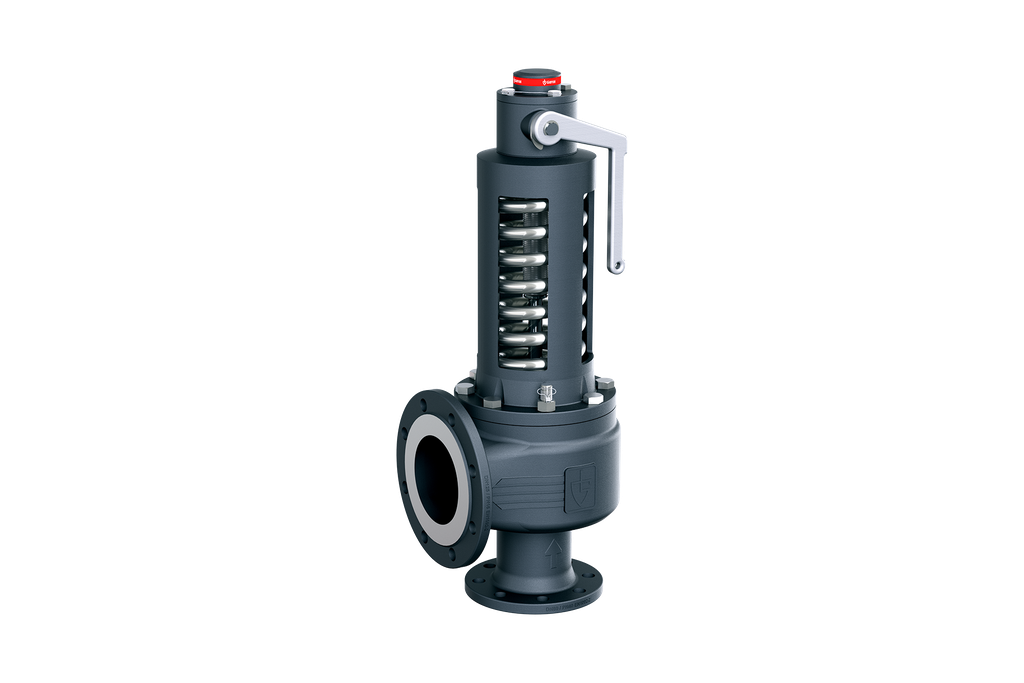

safety valve series SV52; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN65/PN40; outlet DN100/PN16; seal PTFE; medium temperature -60...+225°C; set pressure 11,8bar
Country of origin: Germany
Short Itemnumber: SV52654W5911.8T
safety valve series SV52; gas-proof cover; with lifting lever; body ductile iron; application: liquids, compressed air, gases, vapors; inlet DN65/PN40; outlet DN100/PN16; seal PTFE; medium temperature -60...+225°C; set pressure 11,8bar
Technical specifications
| Inlet | DN65/PN40 |
|---|---|
| Outlet | DN100/PN16 |
| Seal | PTFE |
| Medium temperature | -60...+225 °C |
| Inlet | DN65/PN40 |
| Outlet | DN100/PN16 |
| Seal | PTFE |
| Medium temperature | -60...+225 °C |
| Set pressure | 11,8 bar |
SV52-654W-59-11,8-T
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
