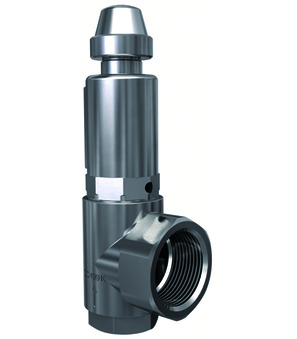

Safety valve Series SV32; With twist lifting; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Application: Compressed air, Non-toxic gases, vapors; Inlet G 3/4"; Outlet G 11/4"; DN 18mm; Set pressure 7,2bar; Seal FKM; Medium temperature -20...200°C
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: SV3234W187.2
Sicherheitsventil Serie SV32; mit Drehanlüftung; Körper Edelstahl 1.4404; Haube Edelstahl 1.4408; Anwendung: Druckluft, ungiftige Gase, Dämpfe; Eintritt G 3/4"; Austritt G 11/4"; DN 18mm; Einstelldruck 7,2bar; Dichtung FKM; Mediumstemperatur -20...200°C
Technical specifications
| Inlet G | 3/4" |
|---|---|
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 7,2 bar |
| Inlet G | 3/4" |
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 7,2 bar |
| Seal | FKM |
| Medium temperature | -20...+200 °C |
SV32-34W-18-7,2
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV32 · DE
Data sheet 8,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV32 · EN
Data sheet 8,1 MB Updated 13/06/2026
