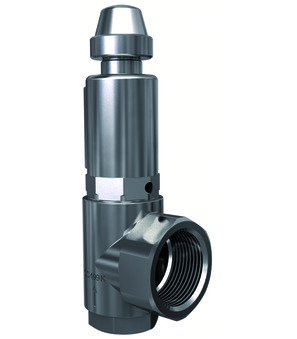

Safety valve Series SV32; With twist lifting; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Application: Compressed air, Non-toxic gases, vapors; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 22bar; Seal FKM; Medium temperature -20...200°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness
Country of origin: Germany
Short Itemnumber: SV3212W15.8223F
safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 22bar; seal FKM; medium temperature -20...200°C; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Technical specifications
| Inlet G | 3/4" |
|---|---|
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 7,2 bar |
| Inlet G | 3/4" |
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 7,2 bar |
| Seal | FKM |
| Medium temperature | -20...+200 °C |
SV32-12W-15,8-22-3F
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV32 · DE
Data sheet 8,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV32 · EN
Data sheet 8,1 MB Updated 13/06/2026
