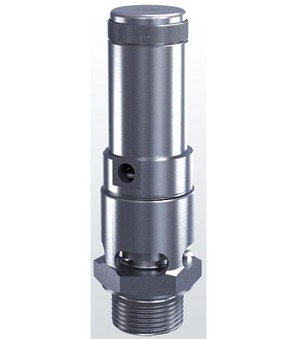

Safety valve 3/8"-10-FKM--20...200-16
Safety valve Series SV25; With twist lifting; Body Stainless steel AISI 316Ti; Compression spring Stainless steel AISI 301; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; G 3/8"; DN 10mm; Seal FKM; Medium temperature -20...200°C; Set pressure 16Bar; Incl. ATEX-certificate
Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber: SV253810160
Country of origin: Germany
Short Itemnumber: SV253810160
safety valve series SV25; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 3/8"; DN 10mm; seal FKM; medium temperature -20...200°C; set pressure 16bar; incl. ATEX-certificate
| dimension | |
|---|---|
| Male thread | G 3/8" |
| DN | 10 mm |
| design | |
| Design | ATEX |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 16 bar |
| Medium temperature | -20...+200 °C |
No spare parts are available for this product.
