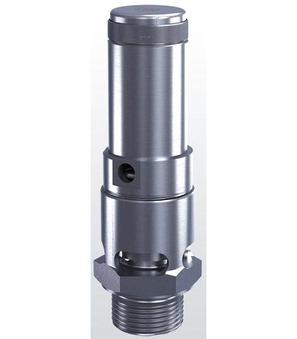

Safety valve 3/4"-16-11-FKM--20...200
Safety valve; With twist lifting; Body Stainless steel AISI 316Ti; Compression spring Stainless steel AISI 301; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; G 3/4"; DN 16mm; Set pressure 11Bar; Seal FKM; Medium temperature -20...200°C; Incl. TÜV-Inspection certificate EN-10204-3.2
Intrastat No.: 84814010
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: SV253420113G
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: SV253420113G
safety valve; with twist lifting; body stainless steel AISI 316Ti; compression spring stainless steel AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; G 3/4"; DN 16mm; set pressure 11bar; seal FKM; medium temperature -20...200°C; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| Male thread | G 3/4" |
| DN | 11 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 11 bar |
| Medium temperature | -20...+200 °C |
No spare parts are available for this product.
