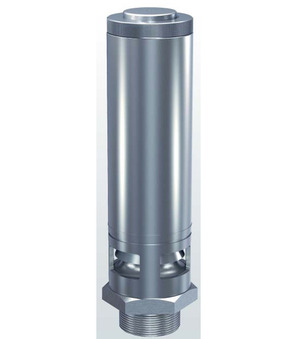

Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal PTFE; Medium temperature -60...+225°C; Connection G 1/2"; DN 14mm; Set pressure 35bar
Country of origin: Germany
Weight: 0.51 Kg
Short Itemnumber: SV11121435T3G
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; incl. TÜV-inspection certificate EN-10204-3.2; seal PTFE; medium temperature -60...+225°C; connection G 1/2"; DN 14mm; set pressure 35bar
Technical specifications
| Connection | G 1/2" |
|---|---|
| Seal | PTFE |
| Medium temperature | -60...+225 °C |
| DN | 14 mm |
| Connection | G 1/2" |
| Seal | PTFE |
| Medium temperature | -60...+225 °C |
| DN | 14 mm |
| Set pressure | 35 bar |
| Male thread | G 1/2" |
SV11-12-14-35-T-3G
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV11-3G · DE
Data sheet 4,0 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV11-3G · EN
Data sheet 4,0 MB Updated 13/06/2026
