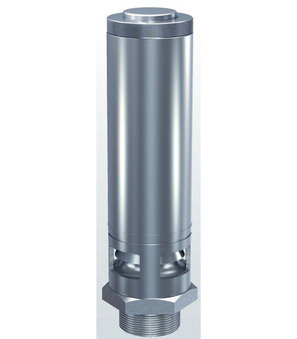

Safety valve SV11-114-31-10-T-3C
Safety valve Series SV11; With twist lifting; Body 1.4404; Compression spring 1.4310; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Connection G 11/4"; DN 31mm; Seal PTFE; Medium temperature -60…225°C; Set pressure 10 bar; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness
Intrastat No.: 84814010
Country of origin: Germany
Weight: 2.6 Kg
Short Itemnumber: SV111143110T3C
Country of origin: Germany
Weight: 2.6 Kg
Short Itemnumber: SV111143110T3C
safety valve series SV11; with twist lifting; body AISI 316L; compression spring AISI 301; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; connection 11/4"; DN 31mm; set pressure 21; seal FKM; medium temperature -20…200°C
| dimension | |
|---|---|
| Male thread | G 1 1/4" |
| DN | 31 mm |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 10 bar |
| Medium temperature | -60...+225 °C |
No spare parts are available for this product.
