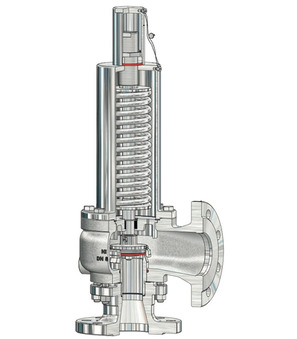

Safety valve SV10-8040-50-15,6-V

Safety valve SV10-8040-50-15,6-V

safety valve series SV10; for vapors, gases and liquids; gas-proof cover; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN40; outlet DN80/PN40; DN 50mm; seat seal FKM; other seals FKM; set pressure 15,6bar

Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber: SV1080405015.6V

safety valve series SV10; for vapors, gases and liquids; gas-proof cover; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN80/PN40; outlet DN80/PN40; DN 50mm; seat seal FKM; other seals FKM; set pressure 15,6bar

22.043,60 zł 22043.6 PLN 22.043,60 zł

DN
- 50 mm
Inlet
- DN80/PN16
Outlet
- DN80/PN16
Valve head
- C
Seat seal
- FPM
Other seals
- FPM
Set pressure
- 11 bar

This combination does not exist.

Availability:

dimension
DN	50 mm
Inlet	DN80/PN16
Outlet	DN80/PN16
function
Valve head	C
materials
Seat seal	FPM
Other seals	FPM
characteristics
Set pressure	11 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Safety valve Series SV10_EN.pdf

Datenblätter

1

Datenblatt_Sicherheitsventil Serie SV10_DE.pdf

No spare parts are available for this product.
