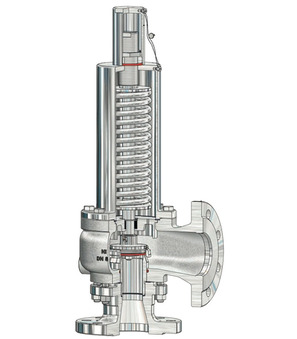

SV10-2540-16-4-F-4C-0
Safety valve; Body 1.4571; Cap 1.4581; With lifting lever; In- and outlet Flange connection DN25; PN40; d0= 16 mm; Set pressure 4 bar; Seat seal 1.4571; Other seals FPM; Bellow; Spindle locking screw; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inspection certificate EN-10204-3.1; For material (Inlet body); Inspection certificate EN-10204-3.1; For material (Seat); TÜV-Inspection certificate EN-10204-3.2; For pressure, function and tightness
Country of origin: Germany
Weight: 4.3 Kg
Short Itemnumber: SV102540164F4C0
safety valve; body AISI 316Ti; cap AISI 316Ti; with lifting lever; in- and outlet flange connection DN25; PN40; d0= 16 mm; set pressure 4 bar; seat seal AISI 316Ti; other seals FPM; bellow; spindle locking screw; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body); inspection certificate EN-10204-3.1; for material (seat); TÜV-inspection certificate EN-10204-3.2; for pressure, function and tightness
