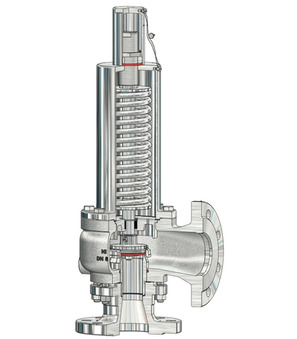

Safety valve DN25/PN40-DN25/PN40-16-C-PTFE glasfaserverstärkt-EPDM/PTFE-16
Safety valve Series SV10; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; Inlet DN25/PN40; Outlet DN25/PN40; DN 16mm; Valve head C; Seat seal PTFE glasfaserverstärkt; Other seals EPDM/PTFE; Set pressure 16bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 4.6 Kg
Short Itemnumber:SV10254016165A
Country of origin: Germany
Weight: 4.6 Kg
Short Itemnumber:SV10254016165A
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN25/PN40; outlet DN25/PN40; DN 16mm; valve head C; seat seal PTFE glasfaserverstärkt; other seals EPDM/PTFE; set pressure 16bar
| dimension | |
|---|---|
| DN | 16 mm |
| Inlet | DN25/PN40 |
| Outlet | DN25/PN40 |
| function | |
| Valve head | C |
| materials | |
| Seat seal | Fibre-glass-reinforced PTFE |
| Other seals | EPDM/PTFE |
| characteristics | |
| Set pressure | 16 bar |
No spare parts are available for this product.
