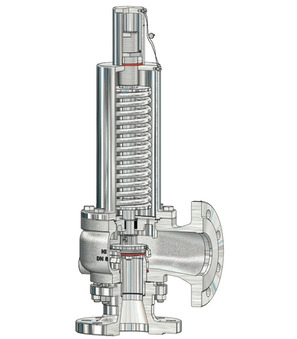

Safety valve DN25/PN16-PTFE-EPDM-1
Safety valve; For vapors, gases and liquids; Body Stainless steel AISI 316Ti; Spring cover And Outlet body Stainless steel AISI 316Ti; Inlet DN25/PN16; Outlet DN25/PN16; DN 16mm; Valve head A; Seat seal PTFE; Other seals EPDM; Set pressure 1bar; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Inspection certificate EN-10204-3.1; For material (Inlet body); Inspection certificate EN-10204-3.1; For material (Seat, Spring, Air outlet housing Respectively Spring cover); Strength pressure test According DIN EN 12266-1; ATEX-declaration
Country of origin: Germany
Weight: 4.6 Kg
Short Itemnumber: SV1025161Q4L0
safety valve; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN25/PN16; outlet DN25/PN16; DN 16mm; valve head A; seat seal PTFE; other seals EPDM; set pressure 1bar; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-3.1; for material (inlet body); inspection certificate EN-10204-3.1; for material (seat, spring, air outlet housing respectively spring cover); strength pressure test according DIN EN 12266-1; ATEX-declaration
| Design | ATEX |
