SV06-2060-10-67,5-I-3G0

Name: SV06-2060-10-67,5-I-3G0
Brand: STASTO
SKU: SV06-2060-10-67,5-I-3G0
Price: 16951.4 PLN
Availability: InStock

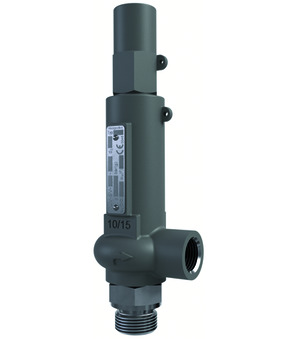

Safety valve ; Body 1.4571; Cap 1.4581; Gas-proof cover; Inlet: Flange according to ANSI 600; Outlet Flange according to ANSI 600; Test hole 1/8"NPT; Screw plug at the inlet body; DN 10mm; Cone seal: PEEK; Other seals: FPM; Set pressure 67,5bar; Incl. TÜV-Inspection certificate EN-10204-3.2

Intrastat No.: 84814010
Country of origin: Germany
Weight: 4.0 Kg
Short Itemnumber: SV0620601067.5I3G0

safety valve ; body AISI 316Ti; cap AISI 316Ti; gas-proof cover with lifting lever; inlet: flange acc. to ANSI 600; outlet flange acc. to ANSI 600; test hole 1/8"NPT; screw plug at the inlet body; DN 10mm; cone seal: PEEK; other seals: FPM; set pressure 67,5bar; incl. TÜV-inspection certificate EN-10204-3.2
