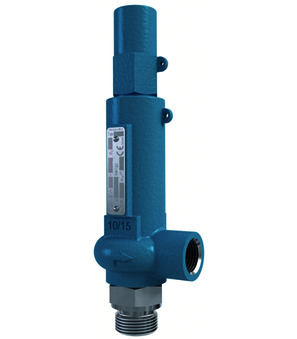

Safety valve Series SV05-3E; Body 1.4571; Cap Ductile iron EN-GJS-400-15, From set pressure 200bar 1.4581; Gas-proof lifting lever; Incl. Inspection certificate EN-10204-3.1 For material, pressure, function and tightness; Inlet male G 1/2"; DN 10mm; Outlet female G 1/2"; Seat seal metallisch; Other seals FKM; Set pressure 140bar
Intrastat No.: 84814010
Country of origin: Germany
Weight: 1.06 Kg
Short Itemnumber: SV051210140F3E
Country of origin: Germany
Weight: 1.06 Kg
Short Itemnumber: SV051210140F3E
safety valve series SV05-3E; body AISI 316Ti; cap ductile iron EN-GJS-400-15, from set pressure 200bar AISI 316Ti; gas-proof lifting lever; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness; inlet male G 1/2"; DN 10mm; outlet female G 1/2"; seat seal metallisch; other seals FKM; set pressure 140bar
Technical specifications
| Inlet male | G 1/2" |
|---|---|
| DN | 10 mm |
| Outlet female | G 1/2" |
| Seat seal | Metallic |
| Inlet male | G 1/2" |
| DN | 10 mm |
| Outlet female | G 1/2" |
| Seat seal | Metallic |
| Other seals | FKM |
| Set pressure | 140 bar |
| Other seals | FKM |
No spare parts are available for this product.
