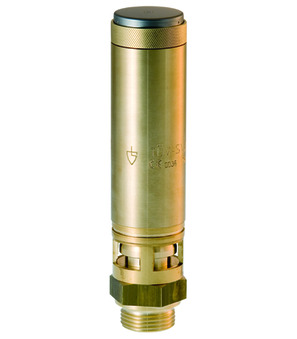

Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; G 11/4"; DN 32mm; Set pressure 9bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.63 Kg
Short Itemnumber: SV02114329
Country of origin: Germany
Weight: 0.63 Kg
Short Itemnumber: SV02114329
Sicherheitsventil Serie SV02; mit Drehanlüftung; Körper Messing; Druckfeder Edelstahl; Dichtung FKM; Anwendung: Druckluft, ungiftige, nicht brennbare Gase, die frei austreten dürfen; Mediumstemperatur -20...200°C; G 11/4"; DN 32mm; Einstelldruck 9bar
Technical specifications
| Female thread | G 1 1/4" |
|---|---|
| DN | 32 mm |
| Set pressure | 9 bar |
| Seal | FKM |
| Female thread | G 1 1/4" |
| DN | 32 mm |
| Set pressure | 9 bar |
| Seal | FKM |
No spare parts are available for this product.
