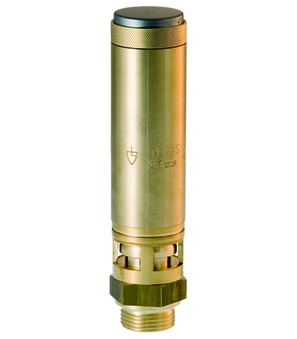

Safety valve 1"-24-0,2...35-1872

Safety valve 1"-24-0,2...35-1872

Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal FKM; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…+200°C; Possible set pressures In steps of 0,1 bar; G 1"; DN 24mm; Set pressure 0,2...35bar; Discharge capacity at 6bar(g) air 1872Nm3/h

Sicherheitsventil Serie SV02
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.3 Kg
Short Itemnumber: SV021024X
https://www.stasto.pl/web/image/product.template/97233/image_1920?unique=c38343c

safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal FKM; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…+200°C; possible set pressures in steps of 0,1 bar; G 1"; DN 24mm; set pressure 0,2...35bar; discharge capacity at 6bar(g) air 1872Nm3/h

954,40 zł 954.4 PLN 954,40 zł

cena na zapytanie

excl. tax
  • Male thread
  • DN
  • Set pressure
  • Blow-off capacity at 6 bar air
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 24 mm
Set pressure 0,2...35 bar
Blow-off capacity at 6 bar air 1872 Nm3/h
Male thread G 1"
All specifications (5)
Documents
Data sheets, drawings and CAD files
DN 24 mm
Set pressure 0,2...35 bar
Blow-off capacity at 6 bar air 1872 Nm3/h
Male thread G 1"
Brand STASTO
