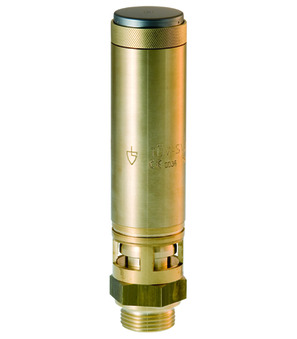

Safety valve SV02-10-24-35-T-3G
Safety valve Series SV02; With twist lifting; Body Brass; Compression spring Stainless steel; Seal PTFE; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20...200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; G 1"; DN 24mm; Set pressure 35bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.18 Kg
Short Itemnumber: SV02102435T3G
Country of origin: Germany
Weight: 1.18 Kg
Short Itemnumber: SV02102435T3G
safety valve series SV02; with twist lifting; body brass; compression spring stainless steel; seal PTFE; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20...200°C; incl. TÜV-inspection certificate EN-10204-3.2; G 1"; DN 24mm; set pressure 35bar
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 24 mm |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 35 bar |
No spare parts are available for this product.
