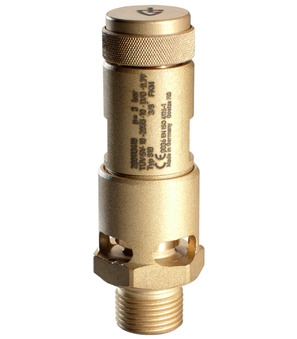

Safety valve SV01-14-7.5-2-3G
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal FKM; Connection G 1/4"; DN 7,5mm; Set pressure 2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.08 Kg
Short Itemnumber:SV01147.523G
Country of origin: Germany
Weight: 0.08 Kg
Short Itemnumber:SV01147.523G
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. TÜV-inspection certificate EN-10204-3.2; seal FKM; connection G 1/4"; DN 7,5mm; set pressure 2bar
| dimension | |
|---|---|
| Connection | G 1/4" |
| DN | 7,5 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 2 bar |
No spare parts are available for this product.
