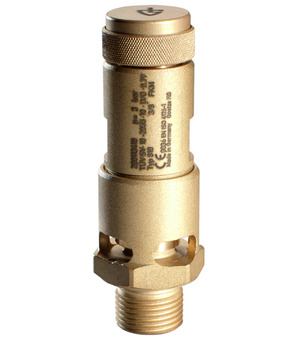

Safety valve FKM-1"-20-25
Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. TÜV-Inspection certificate EN-10204-3.2; Seal FKM; Connection G 1"; DN 20mm; Set pressure 25bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV011020253G
Country of origin: Germany
Weight: 0.6 Kg
Short Itemnumber: SV011020253G
Sicherheitsventil Serie SV01; mit Drehanlüftung; Körper Messing; Druckfeder Edelstahl; Anwendung: Druckluft, ungiftige, nicht brennbare Gase, die frei austreten dürfen; Mediumstemperatur -20…200°C; inkl. TÜV-Abnahmeprüfzeugnis EN-10204-3.2; Dichtung FKM; Anschluss G 1"; DN 20mm; Einstelldruck 25bar
| dimension | |
|---|---|
| Connection | G 1" |
| DN | 20 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 25 bar |
No spare parts are available for this product.
