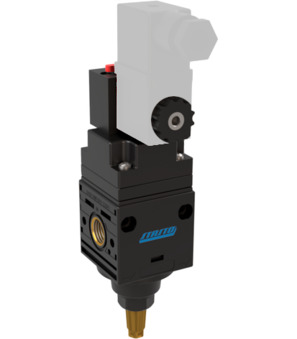

SV-12-E1S-C001-03-C002-31-6

SV-12-E1S-C001-03-C002-31-6

SV-12-E1S
Solenoid valve Series SV; 3/2-way; Inlet pressure 3...10bar; Type of coil C001; Connector size 22mm; Actuation Electrical/spring; Connection 1/2"; Flow at 6,3bar/Δp=1bar 2000Nl/min; Exhaust port 1/4"
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.55 Kg
Short Itemnumber:SV12E1SC00103C002316

SV-12-E1S
solenoid valve series SV; 3/2-way; inlet pressure 3...10bar; type of coil C001; connector size 22mm; actuation electrical/spring; connection 1/2"; flow at 6,3bar/Δp=1bar 2000Nl/min; exhaust port 1/4"
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC

673,60 zł 673.6 PLN 673,60 zł

Connection
- 1/2"
Exhaust port
- 1/4"
Connector size
- 22 mm
Design
- Standard
Voltage
- 24VDC / 48V/50-60Hz
Coil
- C001
Max. inlet pressure
- 10 bar
Flow rate at 6.3bar/Δp=1bar
- 2000 Nl/min

This combination does not exist.

Availability:

Add to Cart

dimension
Connection	1/2"
Exhaust port	1/4"
Designs
Connector size	22 mm
design
Design	Standard
Electrical key figures
Voltage	24VDC / 48V/50-60Hz
characteristics
Coil	C001
Max. inlet pressure	10 bar
Flow rate at 6.3bar/Δp=1bar	2000 Nl/min
