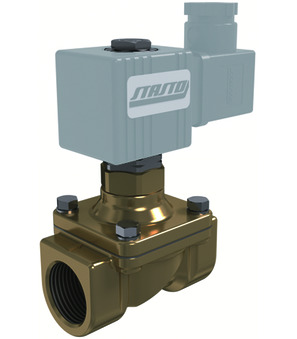

2/2-way solenoid valve SL049-34-BDV08024CY-C003-32-6

2/2-way solenoid valve SL049-34-BDV08024CY-C003-32-6

SL049-34
2/2-way solenoid valve series SL049; combined operated; NO; body brass; stainless steel tube one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/4"; DN 16mm; pressure AC/DC 0...10bar; length 70mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.78 Kg
Short Itemnumber: SL04934BDV08024CYC003326
https://www.stasto.pl/web/image/product.template/221036/image_1920?unique=5c7d6c0

SL049-34
2/2-way solenoid valve series SL049; combined operated; NO; body brass; stainless steel tube one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 3/4"; DN 16mm; pressure AC/DC 0...10bar; length 70mm
BDV08024CY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 24VDC
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC

761,20 zł 761.2 PLN 761,20 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 3/4"
DN 16 mm
Length 70 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0...10 bar
materials
Seal NBR
characteristics
Coil BDA
Approval UL/CSA/VDE
