SG17-65-WWF1/2,5-01

Price:

33.308,90 zł
List prices PL
Other materiales - A08 Store
  1. Products
  2. Armatures
  3. Special armatures
  4. Other materiales - Special armatures
  5. Other materiales - A08
  6. SG17-65-WWF1/2,5-01
SG17-65-WWF1/2,5-01

SG17-65-WWF1/2,5-01

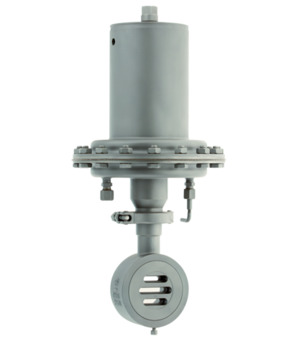

sliding gate-pressure regulator; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; diaphragm EPDM; fixed disc stainless steel AISI 316Ti coated; sliding disc SFC; nominal diameter 65mm; kvs-value 52 (100%); characteristic linear; inlet pressure max. 10bar; pressure range 1...2,5bar; length 46mm; incl. equalizing tank

Intrastat No.: 84818079
Country of origin: Germany
Weight: 0.0 Kg
Short Itemnumber:SG1765WWF12.501
https://www.stasto.pl/web/image/product.template/228518/image_1920?unique=c38343c

sliding gate-pressure regulator; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; diaphragm EPDM; fixed disc stainless steel AISI 316Ti coated; sliding disc SFC; nominal diameter 65mm; kvs-value 52 (100%); characteristic linear; inlet pressure max. 10bar; pressure range 1...2,5bar; length 46mm; incl. equalizing tank

33.308,90 zł 33308.9 PLN 33.308,90 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    No spare parts are available for this product.
