Sliding gate-pressure regulator Series SG17 Store
  1. Products
  2. Armatures
  3. Special armatures
  4. Sliding gate control valves
  5. Sliding gate-pressure regulator Series SG17
  6. SG17-50-WWF4/10

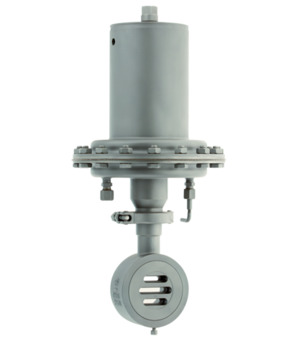

Sliding gate-pressure regulator SG17-50-WWF4/10

Sliding gate-pressure regulator SG17-50-WWF4/10

Sliding gate-pressure regulator Series SG17; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Fixed disc Edelstahl 1.4571 beschichtet; Sliding disc SFC; Nominal diameter 50mm; Kvs-value 45 (100%); Characteristic linear; Pressure range 4...10bar; Length 43mm

Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: SG1750WWF410
https://www.stasto.pl/web/image/product.template/180314/image_1920?unique=4de5898

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; fixed disc Edelstahl 1.4571 beschichtet; sliding disc SFC; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 4...10bar; length 43mm

24.020,90 zł 24020.9 PLN 24.020,90 zł

cena na zapytanie

  • DN
  • Length
  • Pressure range
  • Fixed disc
  • Sliding disc
  • Kvs-value
  • Characteristic

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 50 mm
Length 43 mm
pressure
Pressure range 2...5 bar
materials
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc SFC
characteristics
Kvs-value 45 (100%)
Characteristic Linear

Data sheets, Instructions, 3D-files and Certificates...

ZIP
Montage- und Betriebsanleitungen
1
Betriebsanleitung_Gleitschieber-Druckregler Serie SG17_DE.pdf
Download
No documents are available for this language. Please open "Other languages."
No spare parts are available for this product.
