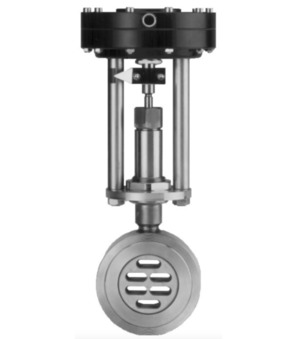

Control valve Type SG10; DN100; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc Sliding disc STN2/STN3; Kvs-value 77 (100%); Characteristic Equal percentage; Diaphragm actuator 250cm²; Mounted I/P-positioner 4...20mA Eckardt SRI986; And 2 Inductive position indicator Eckardt; ATEX-design II 2G EEx ia IIC T6
Country of origin: Germany
Weight: 15.9 Kg
Short Itemnumber: SG10100UWN250401
control valve type SG10; DN100; PN10/40; NC; material: zinc plated steel; fixed disc AISI 316Ti coated; sliding disc sliding disc STN2/STN3; kvs-value 77 (100%); characteristic equal percentage; diaphragm actuator 250cm²; mounted I/P-positioner 4...20mA Eckardt SRI986; and 2 inductive position indicator Eckardt; ATEX-design II 2G EEx ia IIC T6
| Design | ATEX |
| Brand | STASTO |
SG10-100-UWN2504-01
Documents
German / Deutsch
Assembly and Operating Instructions
1-
PDF
Betriebsanleitung · Stellventil Type SG10 100-77-250 · DE
Operating instructions 7,4 MB Updated 13/06/2026
