Control valve Type SG08 125-95

Price:

59.166,90 zł
Other materiales - A08 Store
  1. Products
  2. Armatures
  3. Special armatures
  4. Other materiales - Special armatures
  5. Other materiales - A08
  6. SG08-125-WWCECA-01
Control valve Type SG08 125-95
CVF-65-NC-002
CVF-65-NC-002
55.708,20 zł
55.708,20 zł
CVF-65-NC-004
CVF-65-NC-004
58.518,90 zł
58.518,90 zł

Control valve Type SG08 125-95

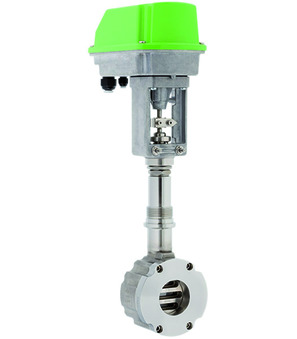

Control valve with electrical actuator Type SG08; DN125; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571; Sliding disc Carbon material; Kvs-value 95 (40%); Characteristic linear; Voltage 24V AC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12,5s

Intrastat No.: 84818079
Country of origin: Germany
Weight: 100.0 Kg
Short Itemnumber:SG08125WWCECA01
https://www.stasto.pl/web/image/product.template/144943/image_1920?unique=af12542

control valve with electrical actuator type SG08; DN125; PN10/40; body: stainless steel AISI 316Ti, fixed disc AISI 316Ti; sliding disc carbon material; kvs-value 95 (40%); characteristic linear; voltage 24V AC/DC; control actuator CA24C; setpoint value input 4-20mA; position feedback 4-20 mA; 2 limit switch; operating time 12,5s

59.166,90 zł 59166.9 PLN 59.166,90 zł

cena na zapytanie

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    No spare parts are available for this product.
