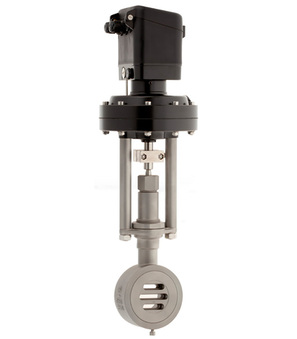

Control valve Type SG07 125-237-1254-8047
Control valve Type SG07; DN125; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 237 (100%); Characteristic Linear; Diaphragm actuator 125cm², Spring configuration 4 (8 Springs); P/P-positioner 0.2-1bar
Intrastat No.: 84818079
Country of origin: Germany
Weight: 14.25 Kg
Short Itemnumber: SG07125UWF125401
Country of origin: Germany
Weight: 14.25 Kg
Short Itemnumber: SG07125UWF125401
control valve type SG07; DN125; PN10/40; NC; material: zinc plated steel; fixed disc AISI 316Ti coated; sliding disc SFC; kvs-value 237 (100%); characteristic linear; diaphragm actuator 125cm², spring configuration 4 (8 springs); P/P-positioner 0.2-1bar
No Specifications
No spare parts are available for this product.
