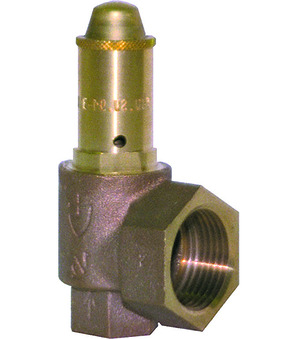

Safety valve, full stroke PTFE--60...+225-1"-11/2"-23-7,5
Safety valve, full stroke Series SF19; With twist lifting; Body Bronze; Application: Compressed air, gases, vapors, Liquids; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal PTFE; Medium temperature -60...+225°C; Inlet G 1"; Outlet G 11/2"; DN 23mm; Set pressure 7,5bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.8 Kg
Short Itemnumber: SF1910W237.5T3C
Country of origin: Germany
Weight: 1.8 Kg
Short Itemnumber: SF1910W237.5T3C
safety valve, full stroke series SF19; with twist lifting; body bronze; application: compressed air, gases, vapors, liquids; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; seal PTFE; medium temperature -60...+225°C; inlet G 1"; outlet G 11/2"; DN 23mm; set pressure 7,5bar
| dimension | |
|---|---|
| DN | 23 mm |
| Inlet G | 1" |
| Outlet | G 1 1/2" |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 7,5 bar |
| Medium temperature | -60...+225 °C |
No spare parts are available for this product.
