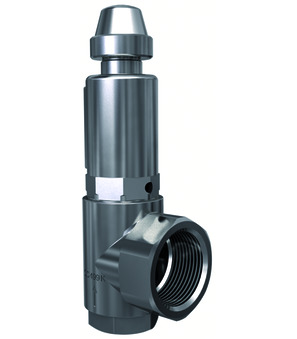

Safety valve, full stroke 1/2"NPT-1"-15,8-EPDM--40...+170-16
Safety valve, full stroke Series SF14; With twist lifting; With bellows; Body Stainless steel 1.4571/1.4408;Application: Compressed air, Gases, Vapors; Inlet 1/2"NPT; Outlet 1"; DN 15,8mm; Seal EPDM; Medium temperature -40...+170°C; Set pressure 16bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber: SF1412NW15.816E
Country of origin: Germany
Weight: 0.45 Kg
Short Itemnumber: SF1412NW15.816E
safety valve, full stroke series SF14; with twist lifting; with bellows; body stainless steel AISI 316Ti/AISI 316;application: compressed air, gases, vapors; inlet 1/2"NPT; outlet 1"; DN 15,8mm; seal EPDM; medium temperature -40...+170°C; set pressure 16bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet | 1/2"NPT |
| Outlet | 1" |
| materials | |
| Seal | EPDM, EPDM |
| characteristics | |
| Set pressure | 16 bar |
| Medium temperature | -40...+170 °C |
No spare parts are available for this product.
