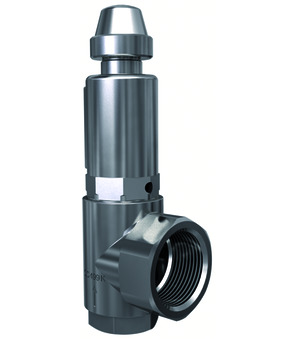

Safety valve, full stroke 11/4"-2"-30,3-PTFE--60...+225-4,5-GOX
Safety valve, full stroke Series SF14; With twist lifting; With bellows; Body Stainless steel 1.4571/1.4408;Application: Compressed air, Gases, Vapors; Inlet 11/4"; Outlet 2"; DN 30,3mm; Seal PTFE; Medium temperature -60...+225°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Set pressure 4,5bar; Free of oil and grease GOX; BAM (CTE)
Intrastat No.: 84814010
Country of origin: Germany
Short Itemnumber: SF14114W30.34.5T3C0
Country of origin: Germany
Short Itemnumber: SF14114W30.34.5T3C0
safety valve, full stroke series SF14; with twist lifting; with bellows; body stainless steel AISI 316Ti/AISI 316;application: compressed air, gases, vapors; inlet 11/4"; outlet 2"; DN 30,3mm; seal PTFE; medium temperature -60...+225°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; set pressure 4,5bar; free of oil and grease GOX; BAM (CTE)
| dimension | |
|---|---|
| DN | 30 mm |
| Inlet | 11/4" |
| Outlet | 2" |
| materials | |
| Seal | PTFE |
| characteristics | |
| Set pressure | 70 bar |
| Medium temperature | -60...+225 °C |
No spare parts are available for this product.
