Safety valve, full stroke SF06-12W-15.8-25
Safety valve, full stroke 1/2"-1"-15,8-16
Safety valve, full stroke 1/2"-1"-15,8-16
1.234,60 zł
1.234,60 zł
Safety valve, full stroke 3/4""-11/4"-18-0,5
Safety valve, full stroke 3/4""-11/4"-18-0,5
2.198,20 zł
2.198,20 zł

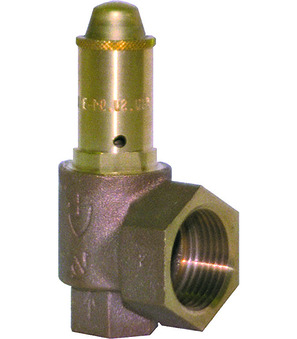

Safety valve, full stroke SF06-12W-15.8-25

Safety valve, full stroke Series SF06; With twist lifting; With bronze-bellow; Body Bronze; Seal EPDM; Application: Toxic, flammable liquids; Medium temperature -40...170°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 25bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.48 Kg
Short Itemnumber:SF0612W15.825
https://www.stasto.pl/web/image/product.template/96911/image_1920?unique=29efce2

safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal EPDM; application: toxic, flammable liquids; medium temperature -40...170°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 25bar

1.234,60 zł 1234.6 PLN 1.234,60 zł

cena na zapytanie

  • DN
  • Inlet G
  • Outlet
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
DN 15,8 mm
Inlet G 1/2"
Outlet G 1"
characteristics
Set pressure 25 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Safety valve, full stroke Series SF06_EN.pdf
Download
CAD / 3D
1
CADSTEP_SF0612W15.825.stp
Download

ZIP
Datové listy
1
Datový list_Pojistný ventil s plným zdvihem série SF06_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Vollhubsicherheitsventil Serie SF06_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_biztonsági szelep, teljes áteresztésű sorozat SF06_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór bezpieczeństwa wysokoprzepływowy Seria SF06_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Varnostni ventil s polnim hodom serija SF06_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_sigurnosni ventil, pun korak serije SF06_SRLATIN.pdf
Download
No spare parts are available for this product.
