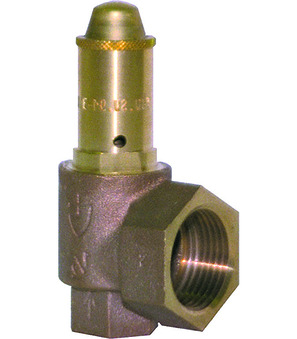

Safety valve, full stroke SF06-12-15.8-10-V
safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal FKM; application: toxic, flammable liquids; medium temperature -20...200°C; inlet G 1/2"; outlet G 1/2"; DN 15,8mm; set pressure 10bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.411 Kg
Short Itemnumber: SF061215.810V
Country of origin: Germany
Weight: 0.411 Kg
Short Itemnumber: SF061215.810V
safety valve, full stroke series SF06; with twist lifting; with bronze-bellow; body bronze; seal FKM; application: toxic, flammable liquids; medium temperature -20...200°C; inlet G 1/2"; outlet G 1/2"; DN 15,8mm; set pressure 10bar
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1/2" |
| characteristics | |
| Set pressure | 10 bar |
No spare parts are available for this product.
