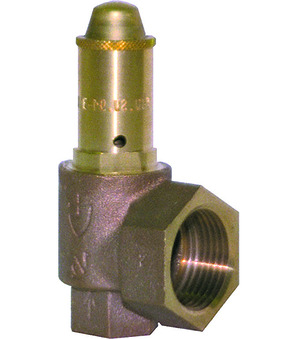

Full-lift safety valve PTFE--60…225°C-3/4"-11/4"-18-0,5
Safety valve, full stroke SF18-34-15,8-30-V-01
Safety valve, full stroke SF18-34-15,8-30-V-01
4.484,50 zł
4.484,50 zł
Safety valve, full stroke PTFE--60…225°C-3/4"-11/4"-18-23
Safety valve, full stroke PTFE--60…225°C-3/4"-11/4"-18-23
2.198,20 zł
2.198,20 zł

Full-lift safety valve PTFE--60…225°C-3/4"-11/4"-18-0,5

Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases;; Seal PTFE; Medium temperature -60…225°C°C; Inlet G 3/4" AG; Outlet G 11/4"; DN 18mm; Set pressure 0,5bar

Intrastat No.: 84814090
Country of origin: Germany
Short Itemnumber:SF0434W180.5T
https://www.stasto.pl/web/image/product.template/181820/image_1920?unique=b5946c2

safety valve, full stroke series SF04; with twist lifting; with bronze-bellow; body bronze; application: toxic, flammable gases;; seal PTFE; medium temperature -60…225°C°C; inlet G 3/4" AG; outlet G 11/4"; DN 18mm; set pressure 0,5bar

2.198,20 zł 2198.2 PLN 2.198,20 zł

cena na zapytanie

  • Female thread
  • DN
  • Female thread 2
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 3/4"
DN 18 mm
Female thread 2 G 1 1/4"
materials
Seal PTFE
characteristics
Set pressure 23 bar
Medium temperature -60...+225 °C
No spare parts are available for this product.
