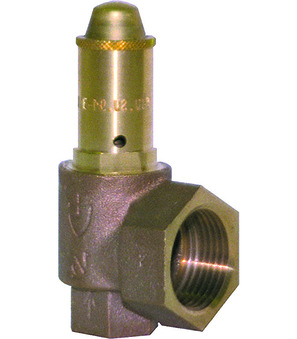

Safety valve, full stroke EPDM--40…170°C-1/2"-1"-15,8-4,2
Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases;; Seal EPDM; Medium temperature -40…170°C°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 4,2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.57 Kg
Short Itemnumber: SF0412W15.84.2
Country of origin: Germany
Weight: 0.57 Kg
Short Itemnumber: SF0412W15.84.2
safety valve, full stroke series SF04; with twist lifting; with bronze-bellow; body bronze; application: toxic, flammable gases;; seal EPDM; medium temperature -40…170°C°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 4,2bar
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 15,8 mm |
| Female thread 2 | G 1" |
| materials | |
| Seal | EPDM, EPDM |
| characteristics | |
| Set pressure | 4,2 bar |
| Medium temperature | -40...+170 °C |
No spare parts are available for this product.
