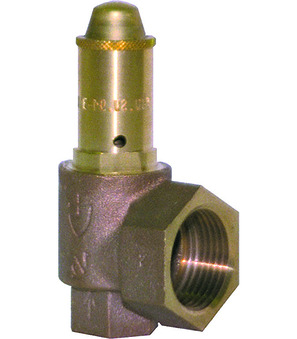

Safety valve, full stroke FKM--20…200°C-1/2"-1"-15,8-16

Safety valve, full stroke FKM--20…200°C-1/2"-1"-15,8-16

Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases;; Seal FKM; Medium temperature -20…200°C°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 16bar

Intrastat No.: 84814090
Country of origin: Germany Made in Europe
Weight: 0.95 Kg
Short Itemnumber: SF0412W15.816V
https://www.stasto.pl/web/image/product.template/96774/image_1920?unique=29efce2

safety valve, full stroke series SF04; with twist lifting; with bronze-bellow; body bronze; application: toxic, flammable gases;; seal FKM; medium temperature -20…200°C°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 16bar

1.234,60 zł 1234.6 PLN 1.234,60 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Female thread 2
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Seal FKM
Medium temperature -20...+200 °C
DN 15,8 mm
Set pressure 16 bar
All specifications (6)
Documents
Data sheets, drawings and CAD files
Seal FKM
Medium temperature -20...+200 °C
DN 15,8 mm
Set pressure 16 bar
Female thread G 1/2"
Female thread 2 G 1"

SF04-12W-15.8-16-V

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
