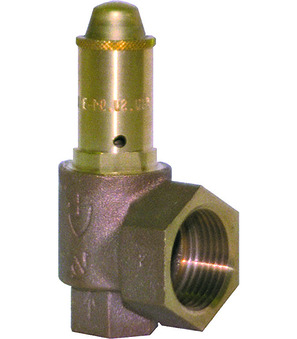

Safety valve, full stroke 3/4"-11/4"-18-5,2
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…+225°C; Inlet G 3/4"; Outlet G 11/4"; DN 18mm; Set pressure 5,2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 1.0 Kg
Short Itemnumber: SF0134W185.2T
Country of origin: Germany
Weight: 1.0 Kg
Short Itemnumber: SF0134W185.2T
safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 3/4"; outlet G 11/4"; DN 18mm; set pressure 5,2bar
| dimension | |
|---|---|
| DN | 18 mm |
| Inlet G | 3/4" |
| Outlet | G 1 1/4" |
| characteristics | |
| Set pressure | 5,2 bar |
No spare parts are available for this product.
