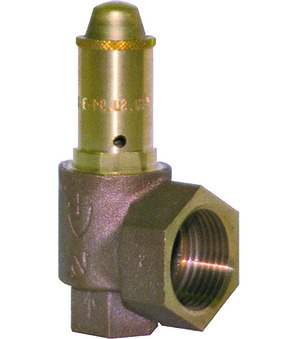

Safety valve, full stroke 1/2"-1"-15,8-335
Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal NBR; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -30…+130°C; Possible set pressures 0,5...25bar In steps of 0,1 bar; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Discharge capacity at 6bar(g) air 335Nm3/h
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.75 Kg
Short Itemnumber:SF0112W15.8X
Country of origin: Germany
Weight: 0.75 Kg
Short Itemnumber:SF0112W15.8X
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30…+130°C; possible set pressures 0,5...25bar in steps of 0,1 bar; inlet G 1/2"; outlet G 1"; DN 15,8mm; discharge capacity at 6bar(g) air 335Nm3/h
| dimension | |
|---|---|
| Female thread | G 1/2" |
| DN | 15,8 mm |
| Female thread 2 | G 1" |
| characteristics | |
| Blow-off capacity at 6 bar air | 335 Nm3/h |
Data sheets, Instructions, 3D-files and Certificates...
In your language
ZIPData Sheets
1Data sheet_Safety valve, full stroke Series SF01_EN.pdf
Download
Declarations of Conformity
1Declaration of conformity_Safety valve, full stroke Series SF01_EN.pdf
Download
CAD / 3D
1CADSTEP_SF0112W15.8X.stp
Download
No spare parts are available for this product.
