Safety valve, full stroke 1/2"-1"-15,8-1

Price:

1.045,90 zł
Safety valve, full stroke Series SF01 Store
  1. Products
  2. Armatures
  3. Pressure regulators, safety valves and accessories
  4. Other materiales - A07
  5. Safety valve, full stroke Series SF01
  6. SF01-12W-15.8-1-T
Safety valve, full stroke 1/2"-1"-15,8-1
Valve insert 11/2"
Valve insert 11/2"
1.489,40 zł
1.489,40 zł
Safety valve, full stroke 1/2"-1"-15,8-1,1
Safety valve, full stroke 1/2"-1"-15,8-1,1
1.045,90 zł
1.045,90 zł

Safety valve, full stroke 1/2"-1"-15,8-1

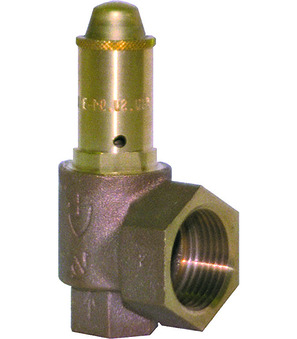

Safety valve, full stroke Series SF01; With twist lifting; Body Bronze; Seal PTFE; Application: Compressed air, Non-toxic gases, vapors; Medium temperature -60…+225°C; Inlet G 1/2"; Outlet G 1"; DN 15,8mm; Set pressure 1bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.46 Kg
Short Itemnumber:SF0112W15.81T
https://www.stasto.pl/web/image/product.template/96663/image_1920?unique=29efce2

safety valve, full stroke series SF01; with twist lifting; body bronze; seal PTFE; application: compressed air, non-toxic gases, vapors; medium temperature -60…+225°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 1bar

1.045,90 zł 1045.9 PLN 1.045,90 zł

cena na zapytanie

  • DN
  • Inlet G
  • Outlet
  • Set pressure

This combination does not exist.

Availability:
Contact Us
dimension
DN 15,8 mm
Inlet G 1/2"
Outlet G 1"
characteristics
Set pressure 1 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_SF0112W15.81T.stp
Download
No spare parts are available for this product.
